12014903 – Toyota JZA80 Supra Oil Filter Relocation Kit
(-10 slip-on hoses and clamp fittings)

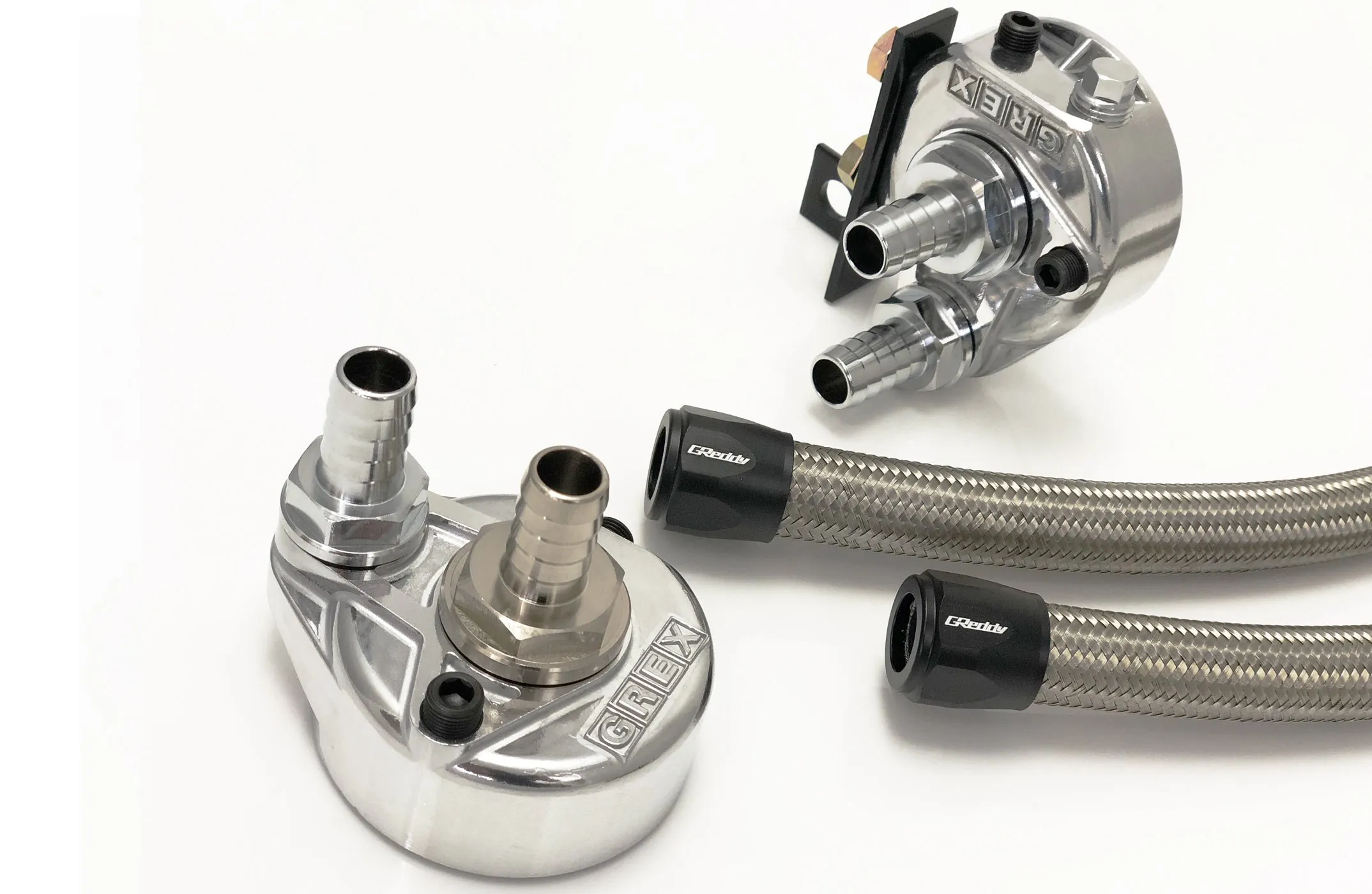

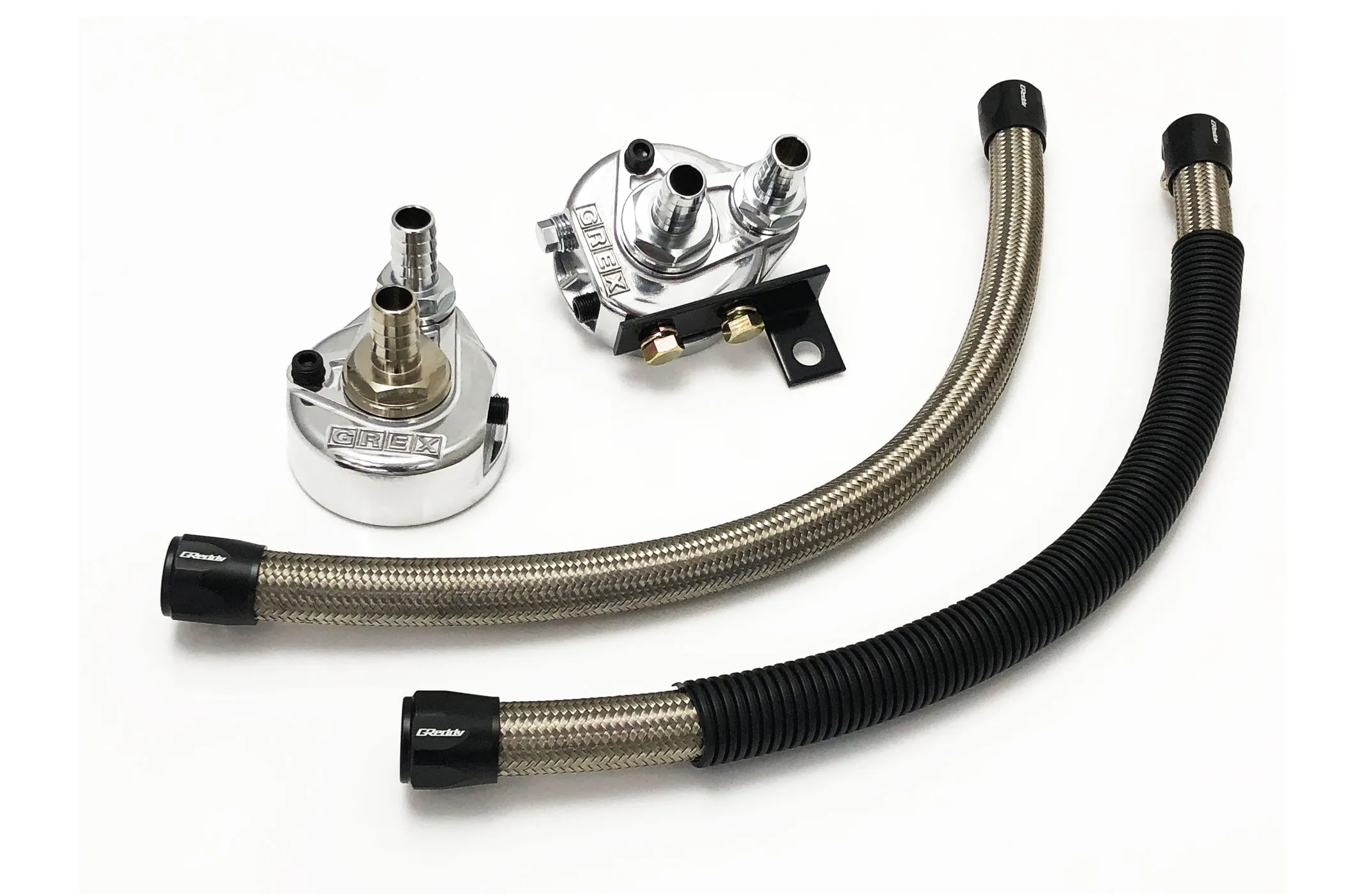

To aid in serviceability of the Supra’s 2JZ-GTE engine, the installation of a GReddy Oil Filter Relocation kit is a must. This bolt-on kit includes two GReddy Oil Blocks (block-side and filter-side) for high-performance slip-on -10 braided lines, GReddy hose ends and necessary mounting brackets and hardware. By repositioning the engine oil filter to a more accessible location, it allows for easier filter changes, while adding a sporty look to the engine compartment. It also provides a simple way to install various (1/8BSP and/or M12xP1.25) temp or pressure sensors for gauges. (use of GReddy QX-01, QX-03 or 3/4-16UNF Filter req.)
Oil Filter Relocation Kits (-10 slip-on hoses and clamp fittings)
This kit allows you to relocate the factory oil filter for easy maintenance with a sporty look. Billet adapters allow for easy installation of (1/8BSP and/or M12xP1.25) gauge sensors, such as oil pressure and oil temperature. Also included are brackets, GReddy clamp fittings and braided-hoses (use of GReddy QX-01, QX-03 or 3/4-16UNF Filter req.)
| Model name | Type of vehicle | E/G | Year | Filter Element Mounting Position | Part# | remarks |
|---|---|---|---|---|---|---|
| Aristo | JZS161 | 2JZ-GTE | 97.08〜04.11 | Left Mission Side | 12014905 | |
| Supra | JZA80 | 2JZ-GTE | 93.05〜02.08 | Left Mission Side | 12014903 | |
| Soarer | JZZ30 | 1JZ-GTE | 91.05〜01.04 | Left Mission Side | 12014905 | |
| Mark II series | JZX81 | 1JZ-GTE | 90.08〜92.10 | Left Mission Side | 12014905 | |
| JZX90 | 1JZ-GTE | 92.10〜96.09 | Left Mission Side | 12014905 | When installing on H4.10 to H5.10 vehicles, it is necessary to change the oil filter bracket and process the water line. | |
| JZX100 | 1JZ-GTE | 96.09〜00.12 | Left Mission Side | 12014907 | ||
| Levin/Trueno | AE86 | 4A-GE | 83.05〜87.05 | LH strut side | 12014900 | |
| Silvia | PS13 | SR20DET | 91.01〜93.10 | RH strut side | 12024907 | |
| S14 / S15 | SR20DET | 93.10〜02.08 | RH strut side | 12024904 | Engines with center bolt M20 × P1.5 require an oil filter with a center bolt size of 3/4-16 UNF. | |
| Skyline | HCR32 | RB20DET | 89.05〜93.08 | RH strut side | 12024901 | |
| ECR33 | RB25DET | 93.08〜98.06 | RH strut side | 12024903 | ||
| ER34 | RB25DET | 98.06〜01.06 | RH strut side | 12024910 | ||
| Skyline GT-R | BNR32 | RB26DETT | 89.08〜95.01 | RH strut side | 12024902 | |
| BCNR33 | RB26DETT | 95.01〜98.12 | RH strut side | 12024906 | ||
| BNR34 | RB26DETT | 99.01〜02.08 | RH strut side | 12024912 | ||
| Stager | WGNC34 | RB25DET | 96.09〜01.10 | RH strut side | 12024910 | |
| Integra | DC2 | B18C | 93.05〜01.07 | Intake Manifold side | 12054901 | Engines with center bolt M20 × P1.5 require an oil filter with a center bolt size of 3/4-16 UNF. |
| Eunos Roadster | NA6CE | B6 | 89.06〜93.08 | Alternator side | 12044901 | Engines with center bolt M20 × P1.5 require an oil filter with a center bolt size of 3/4-16 UNF. |
| RX-7 | FC3S | 13B-T | 85.10〜92.10 | LH strut side | 12044900 | Engines with center bolt M20 × P1.5 require an oil filter with a center bolt size of 3/4-16 UNF. |
| FD3S | 13B-REW | 91.11〜02.08 | LH strut side | 12044902 | Engines with center bolt M20 × P1.5 cannot be installed on vehicles with I/J holders require an oil filter with a center bolt size of 3/4-16UNF. |
Also see Optional AN Fitting for Type G and Type F Remote Oil Blocks to convert slip-on fittings to AN fittings. (must also change Hose Fittings to AN style)
GReddy M18xP1.5 gold -10AN Fitting with O-ring -
Oil Reloc. Block Center Fitting (Male 3/4x16UNF / -10AN) -
Oil Reloc. Block Center Fitting (Female 3/4x16UNF / -10AN) -
Oil Reloc. Block Center Fitting (Female M20xP1.5 / -10AN) -
